We provide high quality Stainless Steel Chain Link Fence with almost 18 years experience. The high grade ss mesh fence has excellent corrosion resistence.

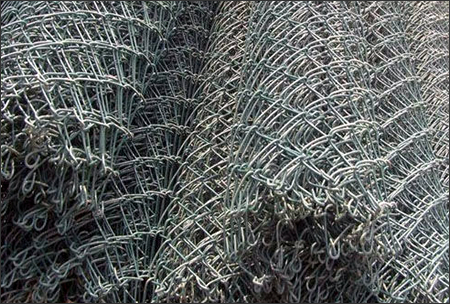

Chain link fence is also called diamond wire mesh:
Materials:high quality low carbon steel wire,stainless steel wire,aluminum alloy wire.
Characteristics: woven diamond pattern provides strong,durable and flexible construction, etc.
Mesh/inch:1/2-2.
Wire gauge:8SWG-16SWG.
Wire diameter:1.63mm-4.06mm.
Aperture:4.0mm-200mm.
Package:on spool or in roll or as the order.
| Stainless Steel Chain Link Mesh | ||||
| Mesh | SWG | Wire diameter | Reference Weight(±kg/m2) | |
| Inch | mm | |||
| 1/2 | 12.7 | 14 | 2.2 | 4.4 |
| 3/4 | 19.05 | 12 | 2.8 | 6.0 |
| 3/4 | 19.05 | 14 | 2.2 | 3.3 |
| 3/4 | 19.05 | 16 | 1.63 | 1.9 |
| 1 | 25.4 | 12 | 2.8 | 4.0 |
| 1 | 25.4 | 14 | 2.2 | 2.4 |
| 1 | 25.4 | 16 | 1.83 | 1.4 |
| 11/4 | 31.75 | 12 | 2.8 | 3.2 |
| 11/4 | 31.75 | 14 | 2.2 | 1.92 |
| 11/2 | 38.1 | 10 | 3.25 | 4.1 |
| 11/2 | 38.1 | 12 | 2.8 | 2.7 |
| 11/2 | 38.1 | 14 | 2.2 | 1.6 |
| 2 | 50.8 | 8 | 4.06 | 4.6 |
| 2 | 50.8 | 10 | 3.25 | 3.1 |
| 2 | 50.8 | 11 | 2.95 | 2.5 |
| 2 | 50.8 | 12 | 2.8 | 2.0 |

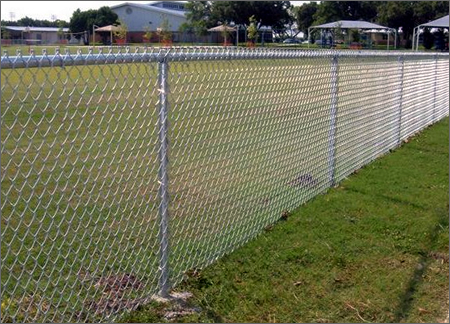

Stainless steel chain-link wire fence:
Application:
Fencing for sports field, river banks protection, construction and residence, also animal fencing.
| Wire thickness | 1.0 - 6.0mm |
| Mesh opening | 20x20mm, 50x50mm, 60x60mm, 80x80mm, 100x100mm etc |
| Mesh height | 0.5m - 6m |
| Mesh length | 4m - 50m |
| Post & rail diameter | 32mm, 42mm, 50mm, 60mm, 76mm, 89mm etc |
| Post & rail thickness | 1.5mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm etc |
