vinyl coated chain link fence for swimming pool safety

LanXinHai Chain Link Fence Machine Factory is an experienced manufacturer and exporter of various Black Vinyl Coated Chain Link Fence.

We offers black vinyl coated chain link fence gates to fit the fence system to make a beautiful yarn for you. With the bright color, black chain link fabric is much suitable for the yards, parks, zoos, pool security fencing, industrial zones compared to galvanized chain fencing and stainless steel chain-link fence. In addition, it costs low than other type materials. Fence materials are galvanized before steel, then plastic coated with black or green or other colors.

Vinyl coated chain link fence is usually green color plastic netting fence woven in diamond holes. The metal mesh for sports usually refers to green plastic coated chain link fence after galvanized. Other types of sports fencing including galvanized chain link, vinyl coated or stainless steel one are also available upon request.

Vinyl coated chain link fence – covering tennis courts fence - basketball court fence – football court fence - soccer fencing - comes in the form of perimeter fencing and protective fencing to enhance the sports, and the fences are offered in diverse styles, constant new color patterns and long service life.
Sports Perimeter Fence Structures: Mesh fabric, frames, posts and accessories:
Example Project of Galvanized Green Painted Chain Link Sports Fence:
1. Coated wire diameter 3.8mm
2. Mesh 50mm X 50mm
3. Size: 3000mm X 4000mm
4. Vertical Post: diameter pipe 60/2.75mm
5. Horizontal Post: diameter welded steel pipe 60/2.75mm
6. Connection: Welding
7. Anticorrosion treatment: Anti-rust primer paint + advanced metallic paint.

Chain Link Fence Materials – MS/ mild steel wire.
Wire Diameter – 3mm (10 SWG Gauge).
Opening – 55mm X 55mm Mesh.
Fence Width – 2.62 meter and length - 15 m per roll.
Finishes: Hot Dip Galvanized, 150GSM or PVC Coated galvanized mild steel.
Helically wound mesh 3.15 mm diameter wire

Black Vinyl Coated Chain Link Fence Specifications:

1. Wire Diameter: 3.55/4.75 mm, 2.50/3.55 mm, 2.24/3.15 mm, 1.70/2.50 mm. As the iron wire surface is with the vinyl coating.

2. Mesh Opening: 30mm - 60mm.

3. Fence Height: Common heights include 1m, 1.2m, 1.5m, 1.8m, 2m.

4. Package: The standard black chain link fence rolls length is 30m or 45m, special length can be available.

Black chain link fitting gates:
Technique specifications:

1.)1.2mt high black powder coated chain link fencing and gates as follows:

Gate and end posts 40NB galvanized steel powder coated black

Posts 32NB galvanized steel powder coated black

2.4mt centers

Top rail 25NB galvanized steel powder coated black

Attached to posts with black powder coated down fittings Chain wire galvanized steel black PVC coated, 60x60 diamond

Bottom cable black PVC coated* 3 sets double gates 25NB frame powder coated black
3.2mt opening size, black chain wire infill.

2) Gates is swing type, hinged to swing 180 degrees from closed to open,

complete with frames, latches, stops, keepers, hinges, fabric, braces,

and PVC coating wire mesh(50×50), diameter 4mm.

3) 42 x 42", 42 x 48", 48 x 48", 42 x 60", 42 x 72" single walk fence gate 1 3/8" tubing hot dipped galvanized

12' x 42", 12' x 48", 12' x 60", 12' x 72" double drive fence gate 1 3/8" tubing hot dipped galvanized

6' x 6', 6' x 12' kennel panel 1 3/8" tubing hot dipped galvanized

Black Chain Link Swimming Pool Fence:
Black Chain Link Swimming Pool Fence
Wire thickness:1.0-6.0mm
Mesh opening:20x20mm,50x50mm,60x60mm,80x80mm,100x100mm etc.
Mesh height:0.5m-6m
Mesh length:4m-50m
Post & rail diameter:32mm, 42mm,50mm,60mm,76mm,89mm etc.
Post & rail thickness:1.5mm,2.0mm,3.0mm,4.0mm,5.0mm etc.

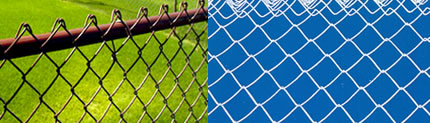

Brown Vinyl Coated Chain Link Fence
Brown Vinyl Coated Chain Link Fence
Surface Treatment of Brown Vinyl Coated Chain Link Fence
PVC coated: Thickness is 0.5mm - 1.0mm,Galvanized: Electric Galvanized or Hot Dipped Galvanized. Zinc coating thickness can do as customers' requirements;

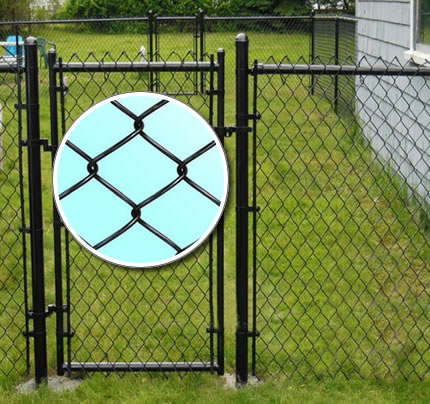

black vinyl coated chain link fence 5 foot
black vinyl coated chain link fence 5 foot

Black PVC Coated Chain Link Fence With Gate For Swimming Pool
Black PVC Coated Chain Link Fence With Gate For Swimming Pool
